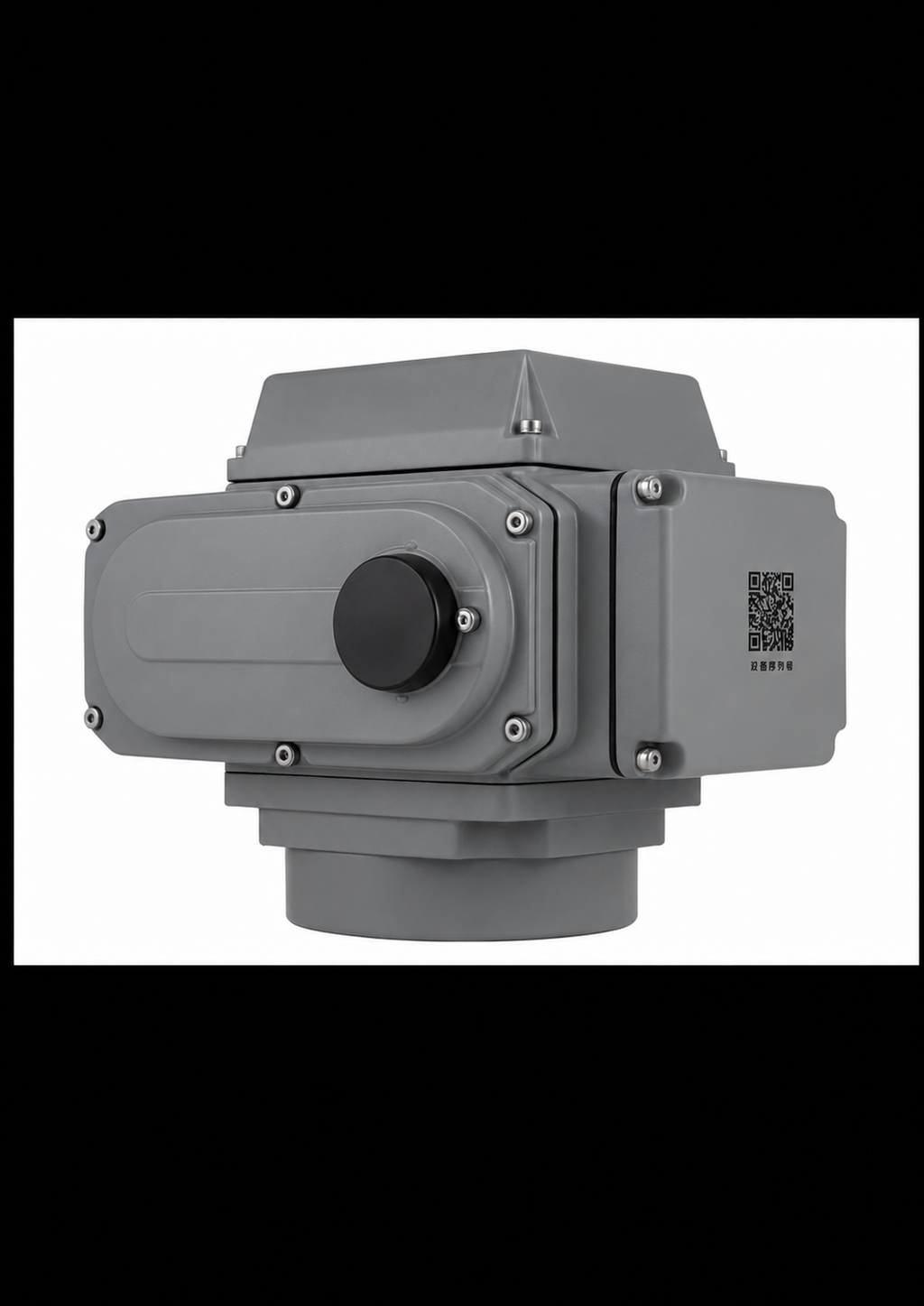

KSP 200 — Quick-Opening Submersible Electric Actuator
The KSP 200 steps up torque and durability for mid-sized pond overflow systems — pairs with butterfly valves up to DN150 and opens automatically the moment your pond hits its set water level. Fully submersible, IP68-rated.
| Output Torque | 200 N·m |
| Recommended Valve Size | DN150 (approx. 6") |
| Action Time | 15 / 30 sec |
| Rotation Angle | 0–90° |
| Power Supply | 110VAC / 220VAC / 24VDC (selectable) |
| Motor Power | 40W (220VAC) / 35W (24VDC) |
| Protection Rating | IP68 — fully submersible |
| Mounting Standard | ISO5211 F10 / 17x17mm inner square |
| Weight | 17.6 lbs |
| Ambient Temperature | −22°F to 140°F standard (high-temp variant available to −58°F/257°F) |
| Motor Life | 220VAC: ≥100,000 hrs service life |
Backed by full open/close limit switches, an auto-resetting overheat protector, and 360° adjustable installation orientation.
For DN200 (8") valves, use the KSP 400 — it clears the higher break-away torque required at that size.
