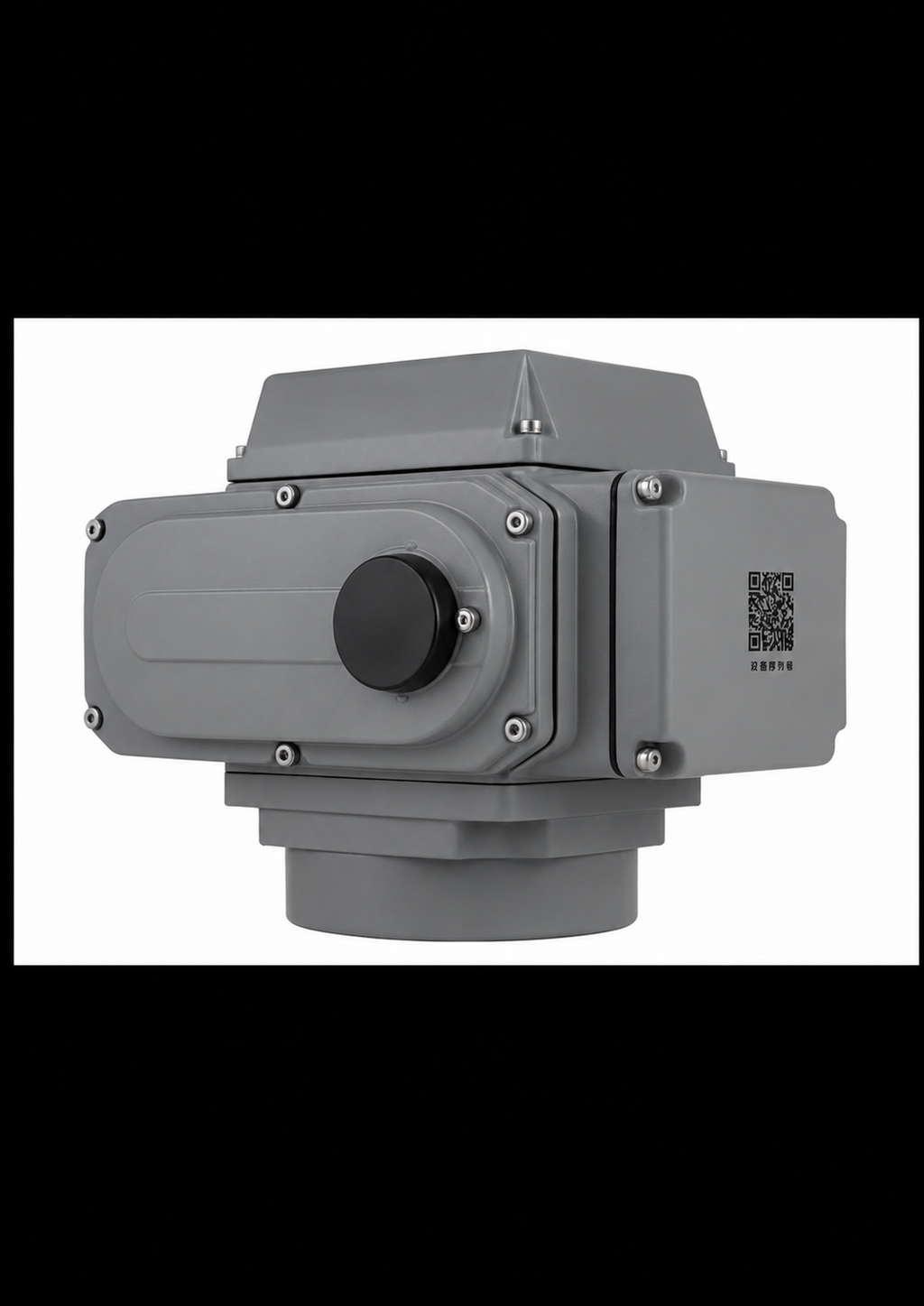

KSP 100 — Quick-Opening Submersible Electric Actuator
The KSP 100 is Kingrey's entry-point automated overflow actuator — built to pair with butterfly valves up to DN125 and trigger open automatically when your pond reaches its set water level. Fully submersible, IP68-rated, and engineered for long, low-maintenance service life.
| Output Torque | 100 N·m |
| Recommended Valve Size | DN50–125 (approx. 2"–5") |
| Action Time | 15 / 30 sec |
| Rotation Angle | 0–90° / 0–360° |
| Power Supply | 110VAC / 220VAC / 24VDC (selectable) |
| Motor Power | 25W (220VAC) / 25W (24VDC) |
| Protection Rating | IP68 — fully submersible |

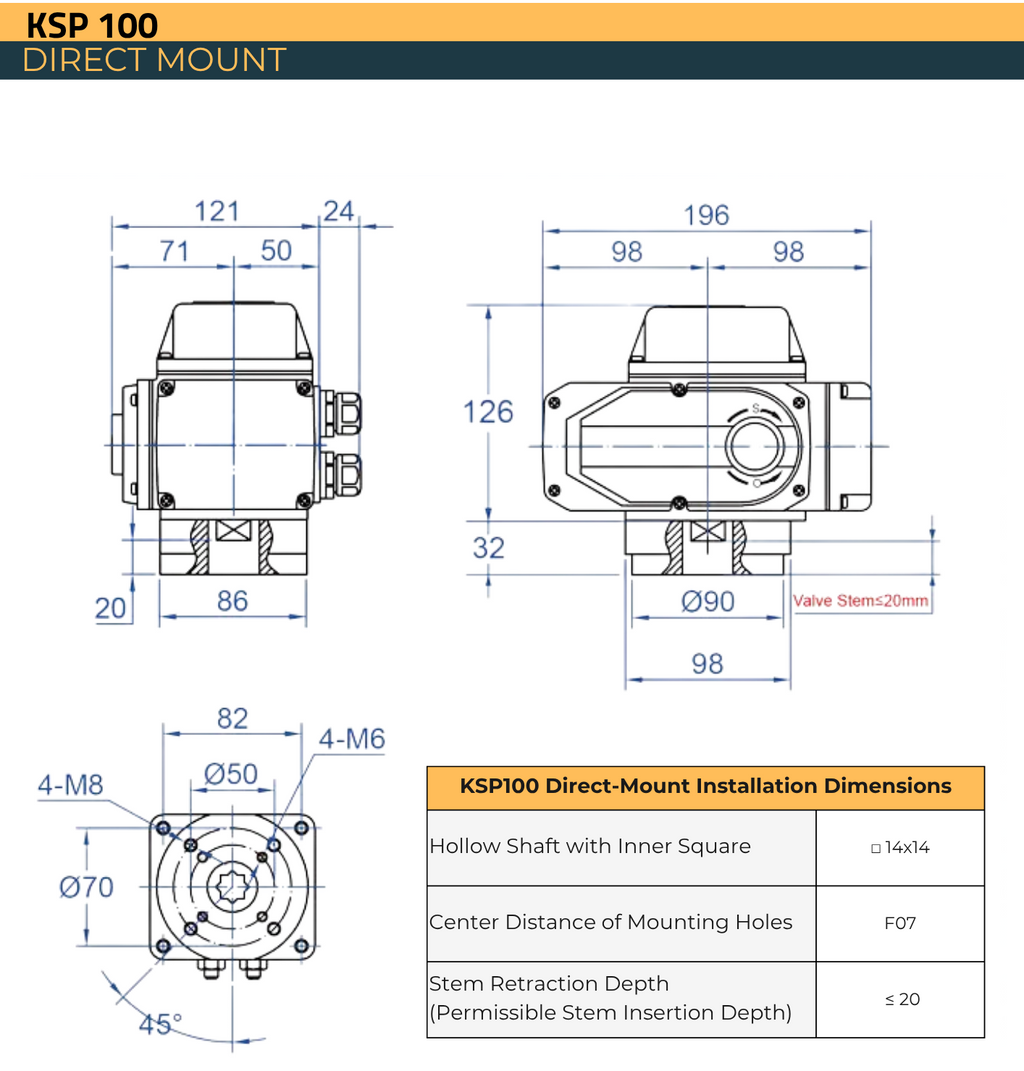

| Mounting Standard | ISO5211 F07 / 14x14mm inner square |
| Weight | 7.7 lbs |
| Ambient Temperature | −22°F to 140°F standard (high-temp variant available to −58°F/257°F) |
| Motor Life | 220VAC: ≥100,000 hrs service life |
Backed by full open/close limit switches, an auto-resetting overheat protector, and 360° adjustable installation orientation.
