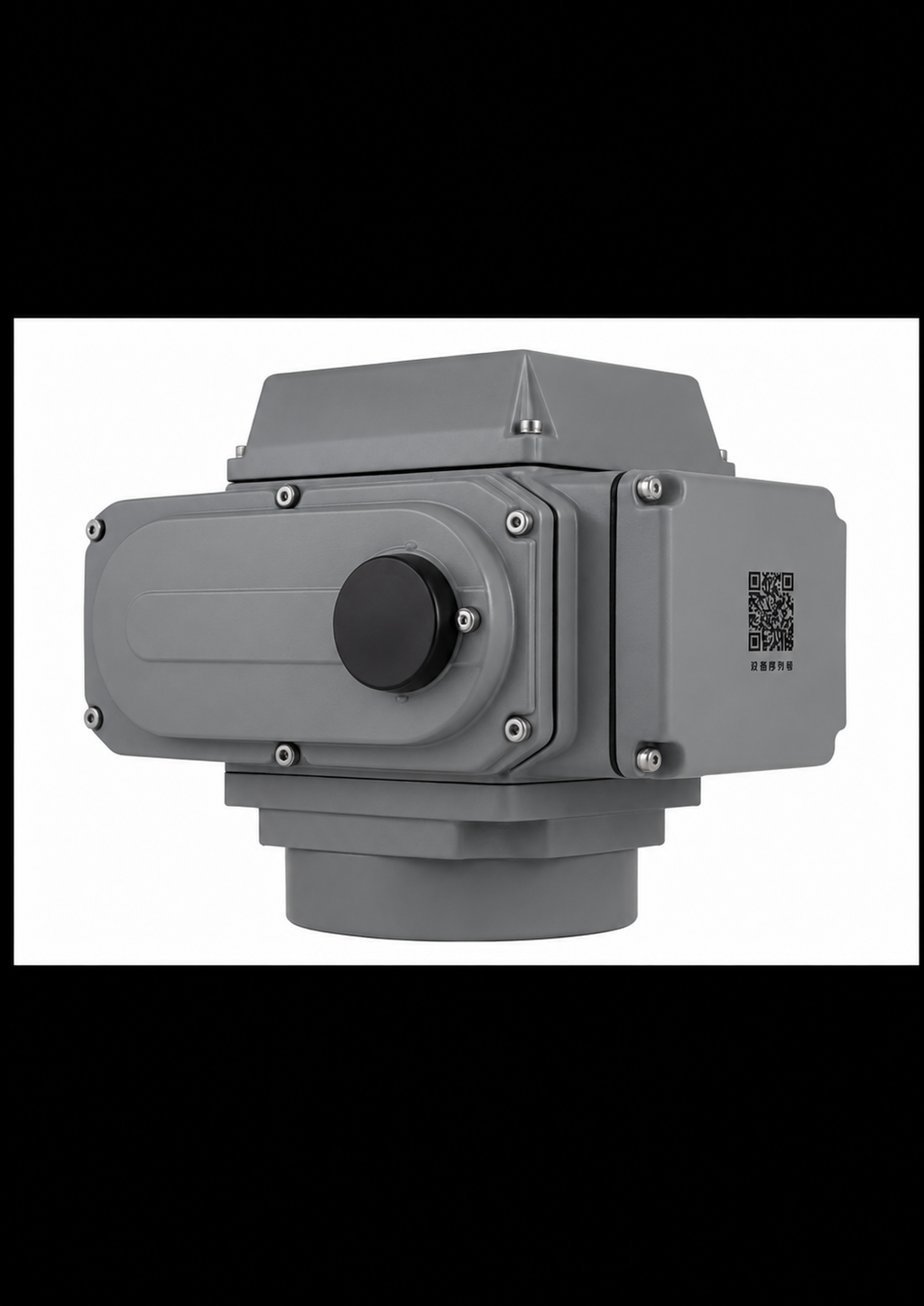

KSP 600 — Quick-Opening Submersible Electric Actuator
The KSP 600 delivers Kingrey's highest torque in the current direct-mount lineup — built for high-capacity overflow systems on DN250 butterfly valves, opening automatically the moment your pond hits its set water level. Fully submersible, IP68-rated.
| Output Torque | 600 N·m |
| Recommended Valve Size | DN250 (approx. 10") |
| Action Time | 45 sec |
| Rotation Angle | 0–90° |
| Power Supply | 110VAC / 220VAC / 24VDC (selectable) |
| Motor Power | 90W (220VAC) / 70W (24VDC) |
| Protection Rating | IP68 — fully submersible |

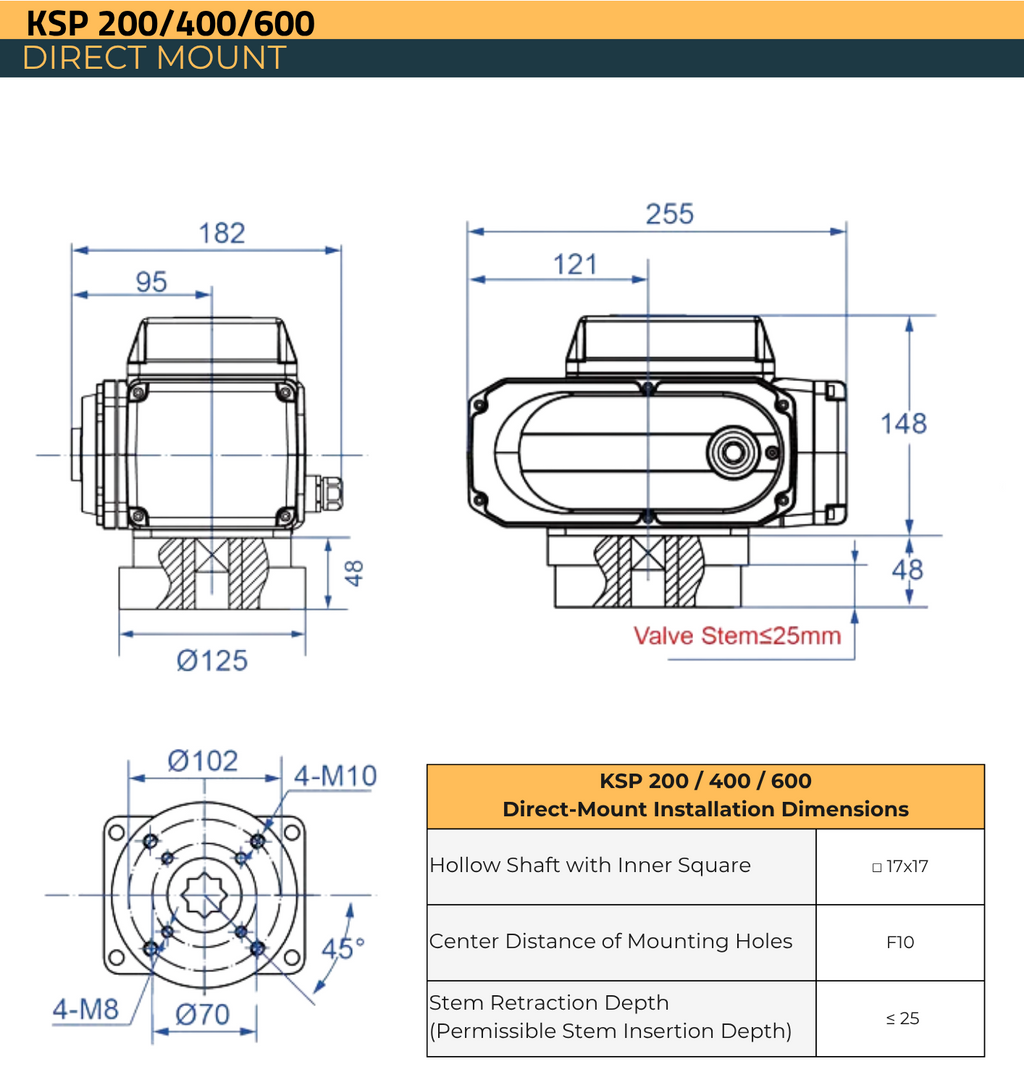

| Mounting Standard | ISO5211 F10 / 17x17mm inner square |
| Weight | 19.8 lbs |
| Ambient Temperature | −22°F to 140°F standard (high-temp variant available to −58°F/257°F) |
| Motor Life | 220VAC: ≥100,000 hrs service life |
Backed by full open/close limit switches, an auto-resetting overheat protector, and 360° adjustable installation orientation.
Note: KSP 600 is not sufficient for DN300 (12") valves — that size requires higher torque than any actuator currently in our lineup. Contact us before pairing.
